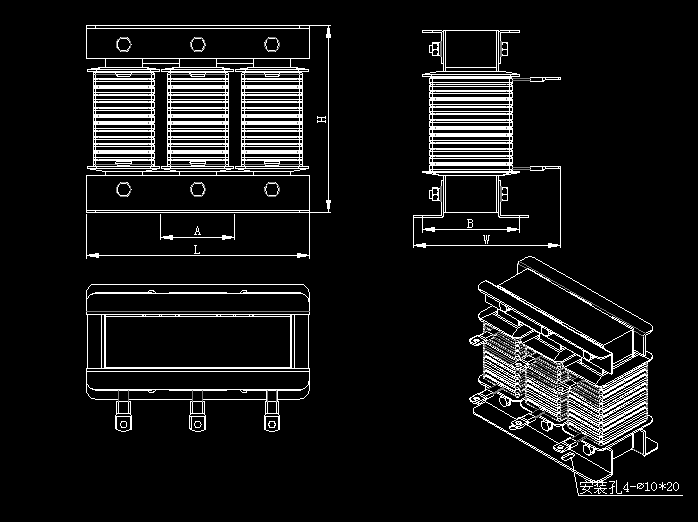

外形尺寸：铜线圈
|
电容器容量 |
电抗器型号 |
电容器电压(V) |
电抗率 |
外形尺寸
|
安装尺寸 |
重量 |
|
10 |
CKSG-0.7/0.48-7% |
480 |
7% |
220*140*160 |
100*90 |
9 |
|
15 |
CKSG-1.05/0.48-7% |
480 |
7% |
220*140*160 |
100*90 |
10 |
|
20 |
CKSG-1.4/0.48-7% |
480 |
7% |
240*160*210 |
100*90 |
17 |
|
25 |
CKSG-1.75/0.48-7% |
480 |
7% |
240*160*210 |
100*90 |
18 |
|
30 |
CKSG-2.1/0.48-7% |
480 |
7% |
240*180*210 |
120*100 |
20 |
|
40 |
CKSG-2.8/0.48-7% |
480 |
7% |
220*180*210 |
140*110 |
23 |
|
50 |
CKSG-3.5/0.48-7% |
480 |
7% |
270*190*230 |
140*110 |
33 |
|
60 |
CKSG-4.2/0.48-7% |
480 |
7% |
300*210*250 |
100*90 |
38 |
外形尺寸：铝线圈
|
电容器容量 |
电抗器型号 |
电容器电压(V) |
电抗率 |
外形尺寸 |
安装尺寸 |
重量 |
|
10 |
CKSG-0.7/0.48-7% |
480 |
7% |
220*140*160 |
100*90 |
8 |
|
15 |
CKSG-1.05/0.48-7% |
480 |
7% |
220*140*160 |
100*90 |
10 |
|
20 |
CKSG-1.4/0.48-7% |
480 |
7% |
240*160*210 |
100*90 |
16 |
|
25 |
CKSG-1.75/0.48-7% |
480 |
7% |
240*160*210 |
100*90 |
17 |
|
30 |
CKSG-2.1/0.48-7% |
480 |
7% |
240*180*210 |
120*100 |
19 |
|
40 |
CKSG-2.8/0.48-7% |
480 |
7% |
220*180*210 |
140*110 |
22 |
|
50 |
CKSG-3.5/0.48-7% |
480 |
7% |
270*190*230 |
140*110 |
32 |
|
60 |
CKSG-4.2/0.48-7% |
480 |
7% |
300*210*250 |
100*90 |
35 |
|
10 |
CKSG-1.4/0.525-7% |
525 |
14% |
240*160*210 |
100*90 |
16 |
|
15 |
CKSG-2.1/0.525-7% |
525 |
14% |
240*160*210 |
120*100 |
19 |
|
20 |
CKSG-2.8/0.525-7% |
525 |
14% |
240*180*210 |
140*110 |
21 |
|
25 |
CKSG-3.5/0.48-7% |
525 |
14% |
270*200*250 |
140*110 |
32 |
|
30 |
CKSG-4.2/0.48-7% |
525 |
14% |
270*200*250 |
140*130 |
34 |
|
40 |
CKSG-5.6/0.48-7% |
525 |
14% |
300*210*240 |
160*130 |
41 |
|
50 |
CKSG-7/0.48-7% |
525 |
14% |
270*210*280 |
160*130 |
45 |
|
60 |
CKSG-8.4/0.48-7% |
525 |
14% |
300*210*280 |
160*130 |
48 |
